Analysis Pipeline Tour: Treasury Curve Replication

This notebook walks through the spline method (from the Waggoner 1997 paper) replication & analysis portions of the project in a lightweight way. It covers four processes:

• Prepare cleaned Treasury data for estimation via tidy_CRSP_treasury

• Run a short-slice McCulloch replication via run_mcc_yield_curve

• Run a short-slice Fisher replication via run_fisher_yield_curve

• Run a short-slice Waggoner replication via run_waggoner_yield_curve

This notebook intentionally does not run the entire project pipeline, so it stays fast enough for iterative exploration.

Imports and Paths

from pathlib import Path

import pandas as pd
import matplotlib.pyplot as plt
from IPython.display import display

import tidy_CRSP_treasury
import run_mcc_yield_curve
import run_fisher_yield_curve
import run_waggoner_yield_curve
from settings import config

ROOT = Path.cwd()
PROJECT_ROOT = ROOT if (ROOT / 'src').exists() else ROOT.parent
DATA_DIR = Path(config('DATA_DIR'))
OUTPUT_DIR = Path(config('OUTPUT_DIR'))

print('PROJECT_ROOT:', PROJECT_ROOT)
print('DATA_DIR:', DATA_DIR)
print('OUTPUT_DIR:', OUTPUT_DIR)

PROJECT_ROOT: /Users/phoebefingold/FINM_Repo/FINM_32900/p14_gurkaynak_sack_wright_2007
DATA_DIR: /Users/phoebefingold/FINM_Repo/FINM_32900/p14_gurkaynak_sack_wright_2007/_data
OUTPUT_DIR: /Users/phoebefingold/FINM_Repo/FINM_32900/p14_gurkaynak_sack_wright_2007/_output

Process 1: Prepare Estimation Input Data

All downstream estimators share one cleaned input file: tidy_CRSP_treasury.parquet. The data cleaning process involves:

• standardizing CRSP fields

• creating mid-prices and maturity fields

• adding runness and sample-screen flags

• writing the tidy dataset for model estimation and diagnostics

tidy_CRSP_treasury.main(DATA_DIR, DATA_DIR)
df_tidy = pd.read_parquet(DATA_DIR / 'tidy_CRSP_treasury.parquet')

print('tidy rows:', len(df_tidy))
print('date range:', pd.to_datetime(df_tidy['date']).min().date(), 'to', pd.to_datetime(df_tidy['date']).max().date())
display(df_tidy.head())

Wrote tidy CRSP Treasury data set saved to: /Users/phoebefingold/FINM_Repo/FINM_32900/p14_gurkaynak_sack_wright_2007/_data/tidy_CRSP_treasury.parquet
tidy rows: 145747
date range: 1970-01-30 to 2026-01-30

	date	cusip	kytreasno	kycrspid	issue_date	maturity_date	coupon	first_coupon_date	itype	iflwr	...	is_under_1y	is_20y	is_20yr_post_1996	is_bond	is_note	is_bill	is_flower	valid_quote	nonnegative_maturity	clean
0	1970-01-30	912793BQ	200639.0	19700228.400000	1969-02-27	1970-02-28	0.0	NaT	4.0	1.0	...	True	False	False	False	False	True	False	True	True	True
1	1970-01-30	912793BR	200646.0	19700331.400000	1969-04-01	1970-03-31	0.0	NaT	4.0	1.0	...	True	False	False	False	False	True	False	True	True	True
2	1970-01-30	912793CG	200653.0	19700430.400000	1969-04-29	1970-04-30	0.0	NaT	4.0	1.0	...	True	False	False	False	False	True	False	True	True	True
3	1970-01-30	912793CH	200660.0	19700531.400000	1969-05-29	1970-05-31	0.0	NaT	4.0	1.0	...	True	False	False	False	False	True	False	True	True	True
4	1970-01-30	912793CU	200666.0	19700630.400000	1969-06-26	1970-06-30	0.0	NaT	4.0	1.0	...	True	False	False	False	False	True	False	True	True	True

5 rows × 35 columns

Demo Window Setup:

To keep runtime reasonable, we run each method on a short window (about 2 years) from the latest available dates and write outputs with a demo_ prefix.

latest_date = pd.to_datetime(df_tidy['date']).max()
demo_start = latest_date - pd.DateOffset(years=2)
demo_end = latest_date
DEMO_PREFIX = 'demo_'

print('Demo window:', demo_start.date(), 'to', demo_end.date())
print('Output prefix:', DEMO_PREFIX)

Demo window: 2024-01-30 to 2026-01-30
Output prefix: demo_

Spline Method #1: McCulloch (1975)

• Fits a discount-curve representation

• Produces discount/spot/forward outputs, bond fit diagnostics, and WMAE/Hit Rate metrics

run_mcc_yield_curve.main(start_date=demo_start, end_date=demo_end, output_prefix=DEMO_PREFIX)
print('Wrote demo_mcc_* artifacts')

Running McCulloch in-sample...
2024-01: 0 / 25 (0%)

Running McCulloch out-of-sample...
2024-01: 0 / 25 (0%)

Wrote McCulloch outputs to: /Users/phoebefingold/FINM_Repo/FINM_32900/p14_gurkaynak_sack_wright_2007/_data
Wrote demo_mcc_* artifacts

Spline Method #2: Fisher (1995)

• Fits a forward-curve representation with smoothing

• Produces curve outputs, lambda/fit diagnostics, and error metrics

run_fisher_yield_curve.main(start_date=demo_start, end_date=demo_end, output_prefix=DEMO_PREFIX)
print('Wrote demo_fisher_* artifacts')

Running Fisher in-sample...
2024-01: 0 / 25 (0%)

Running Fisher out-of-sample...
2024-01: 0 / 25 (0%)

Wrote Fisher outputs to: /Users/phoebefingold/FINM_Repo/FINM_32900/p14_gurkaynak_sack_wright_2007/_data
Wrote demo_fisher_* artifacts

Spline Method #3: Waggoner (1997)

• Fits a flexible forward-curve specification

• Produces curve outputs, fit diagnostics, and error metrics

run_waggoner_yield_curve.main(start_date=demo_start, end_date=demo_end, output_prefix=DEMO_PREFIX)
print('Wrote demo_waggoner_* artifacts')

Running Waggoner in-sample...
2024-01: 0 / 25 (0%)

Running Waggoner out-of-sample...
2024-01: 0 / 25 (0%)

Wrote Waggoner outputs to: /Users/phoebefingold/FINM_Repo/FINM_32900/p14_gurkaynak_sack_wright_2007/_data
Wrote demo_waggoner_* artifacts

Representative Metric Tables (Demo Runs)

Below we preview in-sample and out-of-sample error summaries for the demo-window runs.

metric_files = {
    'MCC (IS)': DATA_DIR / 'demo_mcc_error_metrics.csv',
    'MCC (OOS)': DATA_DIR / 'demo_mcc_oos_error_metrics.csv',
    'Fisher (IS)': DATA_DIR / 'demo_fisher_error_metrics.csv',
    'Fisher (OOS)': DATA_DIR / 'demo_fisher_oos_error_metrics.csv',
    'Waggoner (IS)': DATA_DIR / 'demo_waggoner_error_metrics.csv',
    'Waggoner (OOS)': DATA_DIR / 'demo_waggoner_oos_error_metrics.csv',
}

frames = []
for label, path in metric_files.items():
    if path.exists():
        tmp = pd.read_csv(path)
        tmp['spec'] = label
        frames.append(tmp)

if frames:
    all_metrics = pd.concat(frames, ignore_index=True)
    display(all_metrics.head(12))

    summary = (
        all_metrics.loc[all_metrics['bucket'].astype(str).str.lower() == 'all']
        [['spec', 'wmae', 'hit_rate']]
        .sort_values('wmae')
        .reset_index(drop=True)
    )
    display(summary)
else:
    print('No demo metrics files found.')

	bucket	wmae	hit_rate	spec
0	0-1	0.009623	0.114019	MCC (IS)
1	1-3	0.033557	0.380247	MCC (IS)
2	3-5	0.041631	0.352941	MCC (IS)
3	5-10	0.085360	0.183471	MCC (IS)
4	>10	0.148715	0.194043	MCC (IS)
5	All	0.022471	0.264308	MCC (IS)
6	0-1	0.009760	0.128253	MCC (OOS)
7	1-3	0.035812	0.345395	MCC (OOS)
8	3-5	0.049008	0.328000	MCC (OOS)
9	5-10	0.087539	0.181049	MCC (OOS)
10	>10	0.175857	0.176895	MCC (OOS)
11	All	0.024055	0.246966	MCC (OOS)

	spec	wmae	hit_rate
0	Waggoner (IS)	0.018069	0.316314
1	Waggoner (OOS)	0.019720	0.287176
2	Fisher (IS)	0.019829	0.371408
3	Fisher (OOS)	0.022128	0.300738
4	MCC (IS)	0.022471	0.264308
5	MCC (OOS)	0.024055	0.246966

Representative Method Plots (Demo Runs)

We create quick representative curve plots directly from the demo output files.

demo_curve_files = {
    'McCulloch': DATA_DIR / 'demo_mcc_discount_curve.parquet',
    'Fisher': DATA_DIR / 'demo_fisher_forward_curve.parquet',
    'Waggoner': DATA_DIR / 'demo_waggoner_forward_curve.parquet',
}

for label, path in demo_curve_files.items():
    print(label, path.name, 'exists:', path.exists())

McCulloch demo_mcc_discount_curve.parquet exists: True
Fisher demo_fisher_forward_curve.parquet exists: True
Waggoner demo_waggoner_forward_curve.parquet exists: True

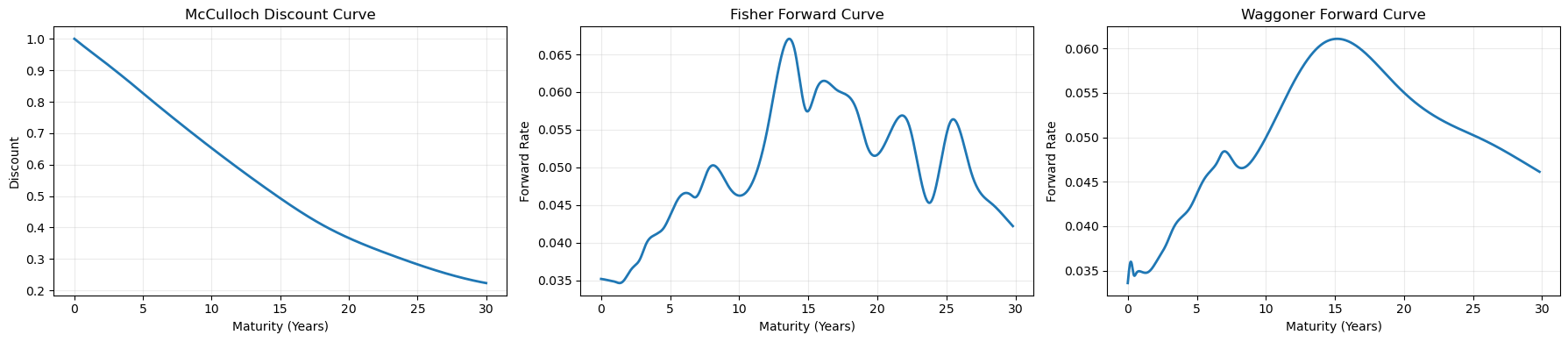

fig, axes = plt.subplots(1, 3, figsize=(18, 4), sharex=False)

for ax, (label, path) in zip(axes, demo_curve_files.items()):
    if not path.exists():
        ax.set_title(f'{label}: missing file')
        ax.axis('off')
        continue

    df_curve = pd.read_parquet(path)
    dmax = pd.to_datetime(df_curve['date']).max()
    snap = df_curve.loc[pd.to_datetime(df_curve['date']) == dmax].copy()
    xcol = 't' if 't' in snap.columns else 'T'

    if label == 'McCulloch':
        x = snap[xcol]
        y = snap['discount']
        ylab = 'Discount'
        title = f'{label} Discount Curve'
    else:
        x = snap[xcol]
        y = snap['forward']
        ylab = 'Forward Rate'
        title = f'{label} Forward Curve'

    ax.plot(x, y, linewidth=2)
    ax.set_title(title)
    ax.set_xlabel('Maturity (Years)')
    ax.set_ylabel(ylab)
    ax.grid(alpha=0.25)

plt.tight_layout()
plt.show()

How This Maps to the Full Pipeline

This lightweight notebook is for method walkthrough and representative diagnostics. For full production artifacts (replication tables, cross-method correlations, report-ready figures), run the doit tasks in dodo.py directly.

required = [
    DATA_DIR / 'tidy_CRSP_treasury.parquet',
    DATA_DIR / 'demo_mcc_error_metrics.csv',
    DATA_DIR / 'demo_fisher_error_metrics.csv',
    DATA_DIR / 'demo_waggoner_error_metrics.csv',
]

check = pd.DataFrame(
    {
        'artifact': [str(p.relative_to(PROJECT_ROOT)) if p.is_relative_to(PROJECT_ROOT) else str(p) for p in required],
        'exists': [p.exists() for p in required],
    }
)

display(check)
print('All lightweight demo artifacts exist:', bool(check['exists'].all()))

	artifact	exists
0	_data/tidy_CRSP_treasury.parquet	True
1	_data/demo_mcc_error_metrics.csv	True
2	_data/demo_fisher_error_metrics.csv	True
3	_data/demo_waggoner_error_metrics.csv	True

All lightweight demo artifacts exist: True
